EAAWVMSBRD

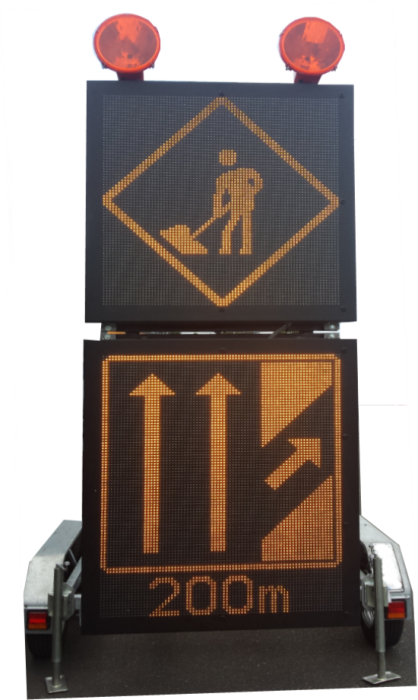

AWVMS VARIABLE MESSAGE BOARD FULL COLOUR

NZTA CoPTTM Compliant

Maximum running time is 45 hours at full pixels before recharging is required
Normal battery operating specifications are 3 x 12 volt Deep Gel Cell batteries
Unit is controlled by on-board tablet with 87 pre-programmed graphic/text sequences and five favourite tabs for simple efficient use
All panels have auto and manual light sensors for changing light conditions
Unit stands 3.65m once fully erected
Vehicle mount, trailer mount or unit mount options available
3 legged support system for standalone option
Vehicle can be wired with specialised plug (as supplied) to assist with the charging the batteries
 AWVMS Board 24 Month Warranty - T&C apply

Lifting Frame/Gear 12 month warranty T&C apply

KEY FEATURES OF THE AWVMS:

Custom built software for NZ market with pre-programmed favourites and simple to use tablet control

Manufactured in Europe and tested to meet EN standards
Full 5 Colour LED

DIMENSIONS:

AWS panel 1380mm x 1380mm
AWS actual display 1190mm x 1190mm
VMS panel 1620mm x 1380mm
VMS actual display 1450mm x 1190mm
80 x 80 Pixels - 15mm pixel pitch
AWS 6400 - VMS 7680 LED’s as per NZTA photometrix requirements

ENVIRONMENTAL DATA:

Temperature T1, T2, T3, (EN12966-1) Range: from - 40ºC to +60 ºC
Humidity: Up to 100%
Mechanical P3 (EN 12966-1) IP56 (IEC / EN 60529)

OPTICAL CHARACTERISTICS:

Pixel distance: 15mm
Classifications: C2, L3, B6, R2 (EN 12966-1:2005 + A1:2009)
Luminance Regulation: Light sensors (default), day time or selection

XENON LIGHTS:

333mm diameter LED amber light
Compliant to European Std EN12352:2006
Loop timing can be changed to allow for flashing sequence
